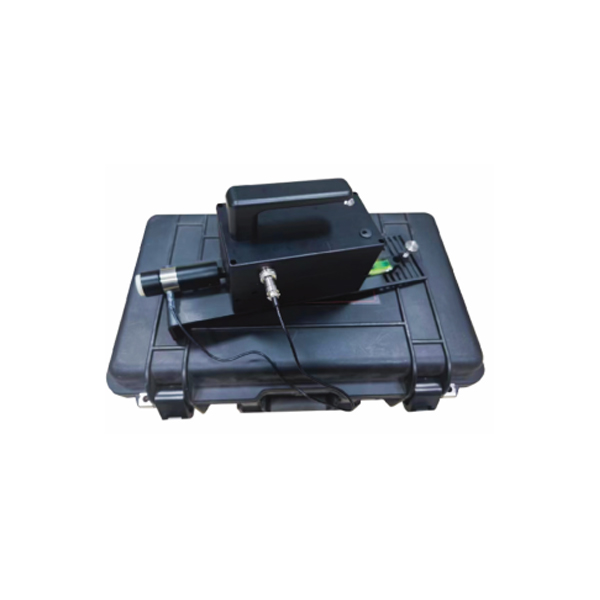

Name:
Elevator baseboard strength detector
Model:
ET-HJB-02
Product features:
It is suitable for detecting the strength of elevator ba
seboard.
Product features:
software displays pressure and deformation in reatime, and automatically records the deformation variable value under the specified pressure;
Click to start the measurement, which can automatically load to the specified requirement of 300N and stop;
When applying force, when the elastic deformation of the baseboard is greater than 35mm, it has the function of displacement and stroke protection, automatically stops applying force, and displays the measurement results;
can manually touch the load to apply force;
The operation of the instrument has the characteristics of rapid measurement and convenient operation, and it does not need on-site assembly;
Wireless connection is adopted between the measuring host and the Bluetooth printer;
the test results can be printed on the spot by Bluetooth printer;
Data can be saved, viewed, printed and deleted;
Technicaparameters:
L-shaped variable measurement range: 0 ~ 49 mm;
Accuracy of L-shaped variable measurement: ≤ 1% f.s;
force application/measurement range: 0 ~ 500 n;
force measurement accuracy: ≤ 1% f.s;
power supply mode: built-in lithium battery;
Duration of continuous battery use: ≥ 5h;
Configuration:
1 measuring host;
1 Bluetooth printer;
1 set of speciacharger;
1 copy of warranty card, certificate of conformity, instruction manuaand third-party verification report;
