Name:

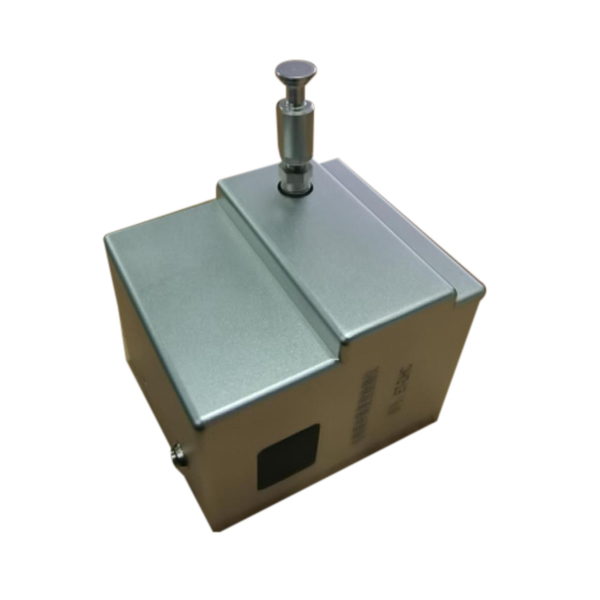

Elevator buffer reset detector
Model:
ET-DHC
Product features:
It is suitable for detecting parameters such as reset time, reset deviation and compression stroke of elevator energy-consuming buffer.
Product features:
The displacement-time curve can be displayed in reatime during the measurement, and the parameters of compression stroke, reset deviation and reset time can be automatically displayed after the measurement;
the measuring host adopts a pull-rope displacement sensor;
The bottom of the measuring host has magnetic adsorption function, which can effectively prevent the measuring host from moving when it is adsorbed on ferromagnetic materials;
One end of the clamp can be clamped on the appropriate position of the telescopic rod of the buffer, and the other end is connected with the rope head of the pull-rope displacement sensor of the measuring host, and the position of the measuring host can be adjusted to ensure that the measuring direction is paralleto the action direction of the buffer;
The measuring host is equipped with an externa4-segment electric quantity display lamp;
measurement host and handheld terminal, and wireless connection is adopted between handheld terminaand Bluetooth printer;
the test results can be printed on the spot by Bluetooth printer;
Software can save, view, print and delete data;
Technicaparameters:
linear accuracy: ≤±0.15%F.S；
measuring range: 0 ~ 2m;
Travel/deviation resolution: 0.001mm；
time resolution: 0.02s；
Configuration:
1 measuring host;
1 handheld terminal;
1 fixture;
1 Bluetooth printer;
1 set of speciacharger;
1 copy of warranty card, certificate of conformity, instruction manuaand third-party verification report
