Name:
Distance measuring instrument between elevator car and shaft wall
Model:
ET-JD
Product features:
It is used to measure the distance between elevator car and shaft wall, and is suitable for on-site inspection and maintenance of the distance between elevator car and shaft walby speciaequipment inspection and testing institutions, elevator companies and elevator maintenance units.
Product features:

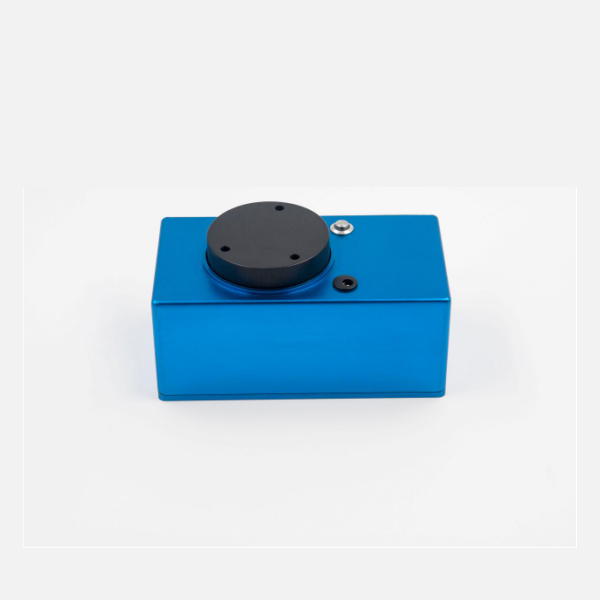

The measurement host adopts the laser radar scanning scheme, which can realize 360-degree all-round laser ranging scanning within the radius of 12 meters in the two-dimensionaplane and generate the cloud image information of the plane points in the space;
The speciasoftware for the instrument can adjust the displacement deviation of the instrument with displacement programming, and there is no need to equip auxiliary equipment such as fixtures and fixtures;
The instrument adopts laser triangulation ranging technology and cooperates with high-speed visuaacquisition and processing mechanism, which can provide ranging actions of 8000 times or more per second; Real-time calculation is carried out by DSP processor inside the sensor;
The detection process can form a plane point cloud picture, and its visuarange can be adjusted to 100 mm to 1600 mm, with standard lines for reference;
The speciasoftware for the instrument can set the effective detection boundary, which can be set according to the actuascene during the detection process, so that the measuring range of the instrument is more accurate;
The instrument comes with laser power consumption detection and sensor health check logic, which automatically stops scanning and turns off the laser transmitter when a specific fault occurs to avoid damage to the outside world and itself;
The instrument uses a low-power (< 5mW) infrared laser as the emission light source, and is driven by modulation pulse. The laser only emits in a very short time to ensure safety and can meet the laser safety standard of Class I;
According to the actuasituation on site, the measuring host can be matched with the speed measuring and ranging device to carry out surface type detection, or only the measuring host can be used to carry out fixed-point position type detection;
Technicaparameters:
N ranging range: 0.15m~12m
N ranging resolution: 1mm
N Ranging accuracy: 1% of actuadistance when ≤3m;
3~5m, 2% of the actuadistance;
2.5% of the actuadistance at 5~12m;
N scanning angle range: 0 ~ 360.
N adjustable angle range: freely adjustable;
N displacement measurement accuracy: 1mm
Configuration:

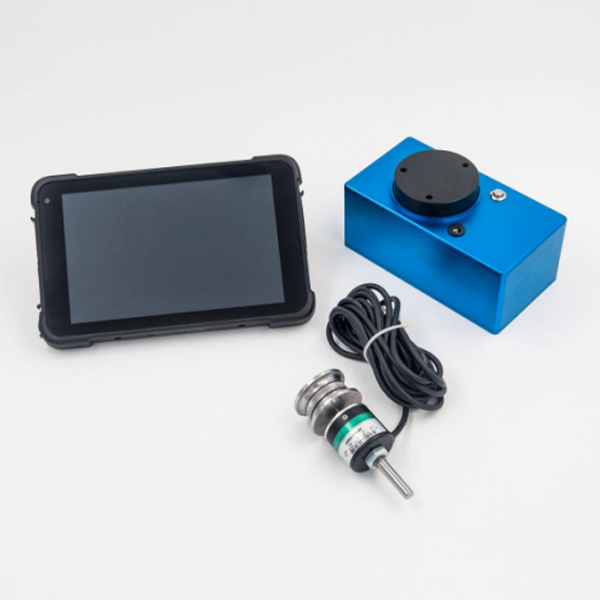

1 measuring host;
1 handheld terminal;
1 set of speed measuring and ranging device;
1 Bluetooth printer;
1 set of speciacharger;
1 copy of warranty card, certificate of conformity, instruction manuaand third-party verification report;
