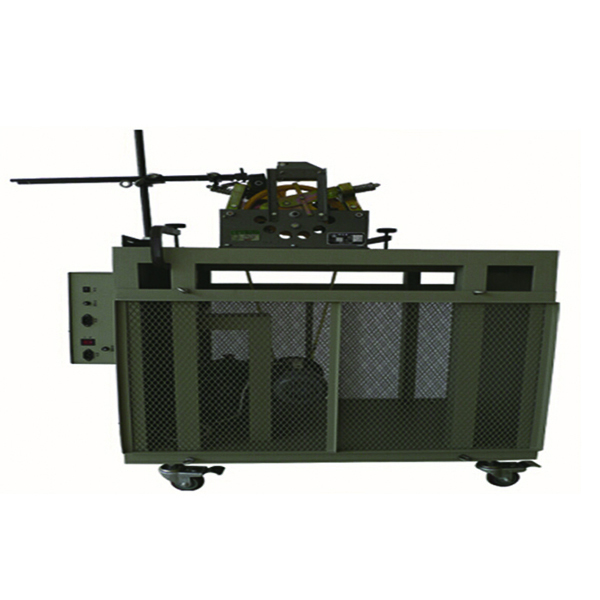

Comprehensive performance test bench for ET-XZ elevator speed limiter
Product features
Suitable for non site inspection of electrical action speed, mechanical action speed, lifting force and other parameters of various elevator speed limiters. It is also suitable for elevator speed limiter manufacturers and related user units to calibrate and inspect the speed limiter. After the inspection is completed, a test report can be generated. The external printer is a comprehensive calibration instrument.
Performance characteristics:
＊The instrument adopts a touch screen display interface, which allows for arbitrary input of Chinese characters, numbers, and characters. The interface is simple and easy to operate;
＊Multiple stop detection methods to meet the measurement needs of different types of speed limiters;
＊Range: The maximum driving speed can reach 10m/s;
＊Control system platform: Windows operating system, capable of intelligently analyzing and generating measurement reports after measurement completion;
＊Software requirements: Integrated solution, integrated design, data analysis, report printing, data storage, etc
＊Data transmission mode: using USB communication;
＊Power supply mode: 220V AC input;
＊The screen has the characteristics of dust-proof, waterproof, and scratch resistant, with a long service life, high precision, light transmittance>98%, and fast response speed;
＊Equipped with a dedicated support frame, the driving position can be adjusted in three dimensions, and the acceleration speed can be automatically adjusted according to the rated speed, which can quickly complete the detection process.
Technical parameter
Speed measurement range: ≤ 10m/s
Measurement error:< 0.01m/s
Speed range: 0.2m/s~10m/s
Speed display resolution: 0.001m/s
Range of tensile force measurement: ≤500kg
Maximum speed of drive motor: 3000r/m
Lifting force display resolution: 0.1N
