Name:

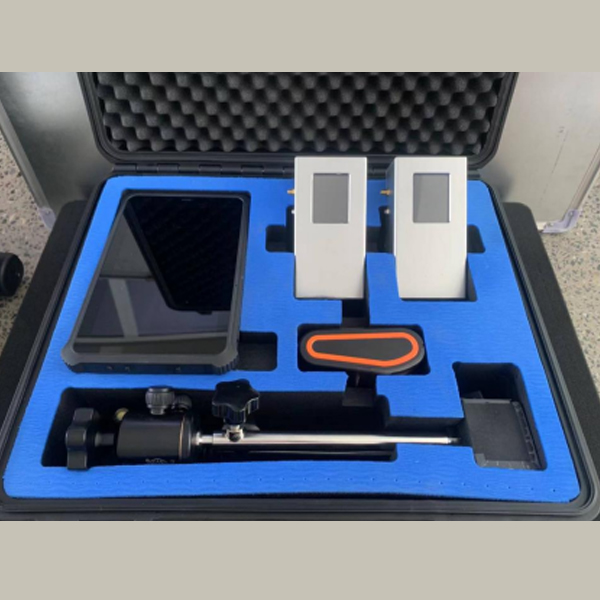

Crane deviation correction detector
Model:
ET-QJP
Product features:
It is suitable for measuring the walking deviation of long-span gantry/bridge cranes.
Product features:
The instrument can monitor the deviation of the left and right guide rails, and after setting the upper limit value of the deviation, the information of the over-standard position and deviation can be generated in the measurement results;
The ranging sensor of the measuring host adopts a free-form lens, which can improve the effective emissivity/reception rate and reduce the light distortion;
The measuring host is equipped with a display screen, through which the current laser spot position can be viewed during measurement;
The screen display area of the measuring host can be enlarged and reduced by software;
The bottom of the support platform is equipped with a large suction magnetic seat, which can make it firmly adsorbed on ferromagnetic materials;
During the measurement, the software interface can display the measured parameters and deviations of the left and right guide rails;
The measuring host is equipped with an external 4-segment electric quantity display lamp;
The measuring host and the handheld terminal are connected wirelessly between the handheld terminal and the Bluetooth printer;
The test results can be printed on the spot by Bluetooth printer;
The software can save, view, print and delete data;
Technical parameters:
Range: 0.5 ~ 200 m;
Ranging accuracy: ±1.0mm；;
Range/deviation resolution: 1 mm;
Sensor laser type: 635nm, < ＜1mW；;
Configuration:
2 measuring hosts;
1 handheld terminal;
1 LORA signal receiver;
2 support platforms;
2 measuring module antennas;
1 Bluetooth printer;
1 set of supporting special charger;
1 copy of warranty card, certificate of conformity, instruction manual and third-party verification report;
