Name:

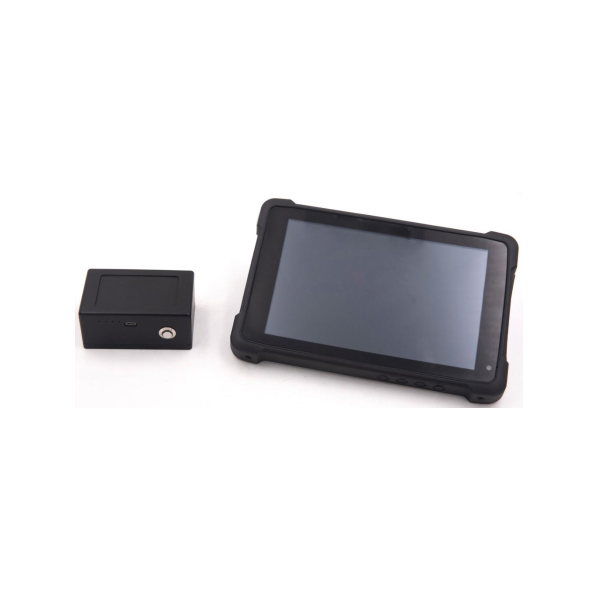

Crane braking slippage speed displacement detector
Model:
ET-QZX
Product features:
It is suitable for measuring the braking slip of crane.
Product features:
The measuring host adopts high-precision laser ranging sensor, which has high sampling accuracy, fast speed and more accurate measurement;
During the measurement process, the software interface displays all measured parameters and time-speed-distance curve in real time, which is more intuitive;
the measuring host adopts magnetic adsorption structure, which is convenient to install and has high efficiency;
The measuring host is equipped with an external 4-segment electric quantity display lamp, which can directly read the electric quantity, which is convenient for users to confirm;
Handheld terminal operating system: Windows；
measurement host and handheld terminal, and wireless connection is adopted between handheld terminal and Bluetooth printer;
the test results can be printed on the spot by Bluetooth printer;
Software can save, view, print and delete data;
Technical parameters:
displacement measurement accuracy: 1 mm;
Measurement accuracy of slip: ≤ 2mm;
speed measuring range: 0.05 ~ 1m/s;
Speed measurement accuracy: ≤ 0.01m/s;
displacement measurement range: 0.5 ~ 100m;
glide resolution: 1 mm;
speed resolution: 0.01 m/s;
Deceleration resolution: 0.01m/s;
time resolution: 0.01s；
working voltage: DC5V；
Configuration:
measuring host;
handheld terminal;
Bluetooth printer;
set of special charger;
copy of warranty card, certificate of conformity, instruction manual and third-party verification report;
